Description: CURRENTLY OPERATING IN FREMANTLE
OWNER KEEN TO SELL
VENDOR FINANCE AVAILABLE SUBJECT TO APPROPRIATE SECURITY
EXPEDITION YACHT WITH TWIN 6 CYLINDER DIESELS -LOW HOURS
OCEAN GOING LIGHT SHIP
IN COMMERCIAL SURVEY -1B & 1C
CURRENT CERTIFICATE OF OPERATION
STABILITY DATA BOOK
CERTIFICATES OF COMPLIANCE
CONSTRUCTION DRAWINGS
CAN BE FOR PRIVATE USE
DESIGNED BY MARINE ARCHITECT JOHN PUGH - STRONGLY BUILT FOR GROUNDING ON SAND OR MUD BOTTOM
(WATER INTAKE HAS REVERSE BLOW OUT SYSTEM TO BLOW OUT MUD IF INTAKE SETTLES BELOW MUD SURFACE- USING AIR COMPRESSOR)
BUILT PROFESSIONALLY UNDER SURVEY BY SYD TOMKINSON -THURSTON YACHTS GLADSTONE
SOUTHERN OCEAN EXPEDITION VESSEL

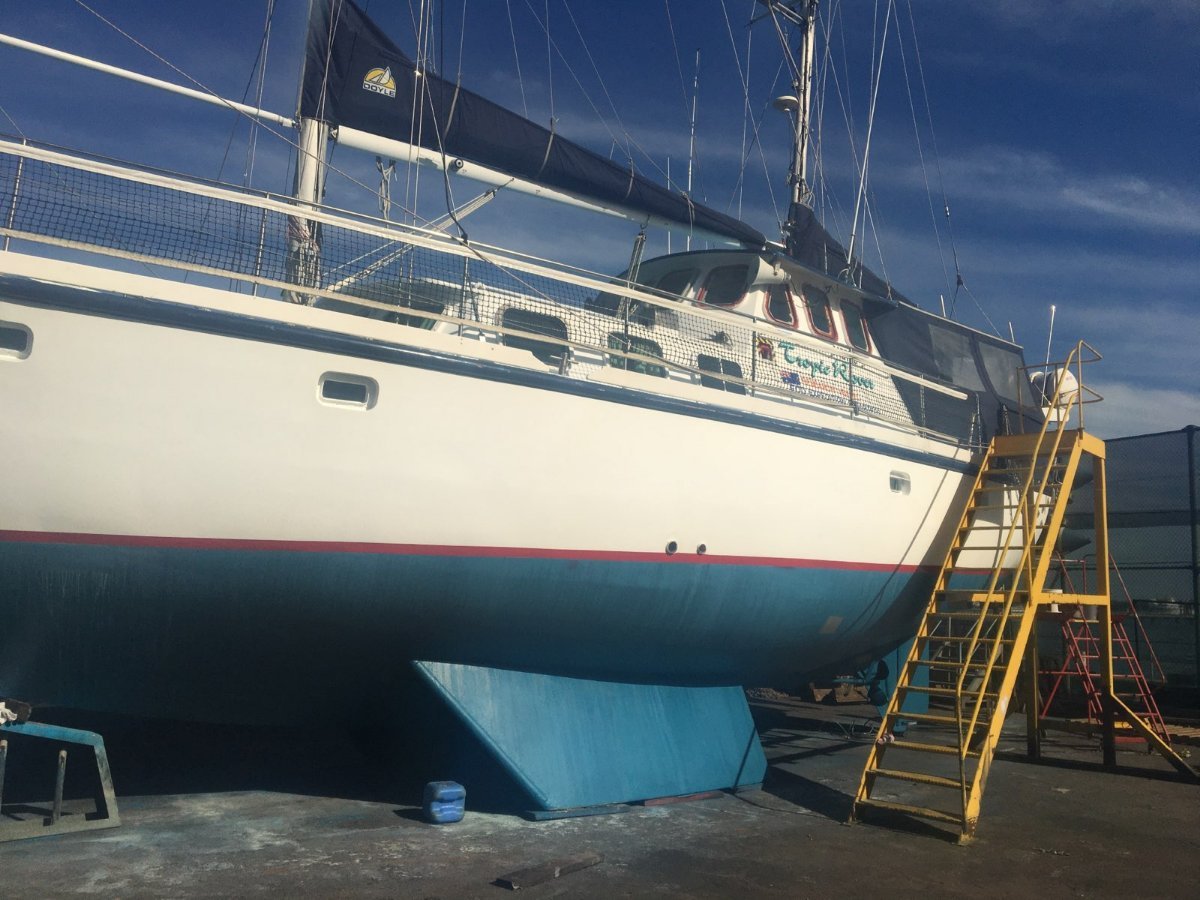

COLD ROLLED ROUND BILGE DEEP V HULL WITH BILGE KEELS
3 LEVELS WITH 2M HEAD ROOM
5 CABINS
1 TRIPLE BERTH - 4 DOUBLE BERTHS AND SINGLE BERTH IN WHEELHOUSE
3 FRIDGES AND 2 FREEZERS
VALUED AT $670,000 BY DW MARINE PTY LTD
TROPICROVERADVENTURES@YAHOO. COM. AU WEB SITE AND BUSINESS AVAILABLE
OWNER SELLING DUE TO ILL HEALTH
|
Reference: | V539 |
Location: | Fremantle WA |
Region: | Western Australia |
Year: | 1984 |
Designer: | JOHH PUGH |
Builder: | THURSTON YACHTS - GLADSTON |
Length: | 60' 0" - 18.30m |
Beam: | 4.82M (WATER LINE LENGTH 16.3M) |
Draft: | 2.15M |
Displacement: | LIGHT SHIP 33.5 TONNES -FULLY LADEN 41 TONNE |
Keel / Ballast: | 7 TONNE POURED LEAD BALLAST + 6 LOOSE LEAD TRIMMING BARS- BILGE KEEL |
Hull Material: | Steel 1/4 INCH PLATE - 6.35mm |
Deck Material: | 3/16 INCH PLATE (4.7mm) |

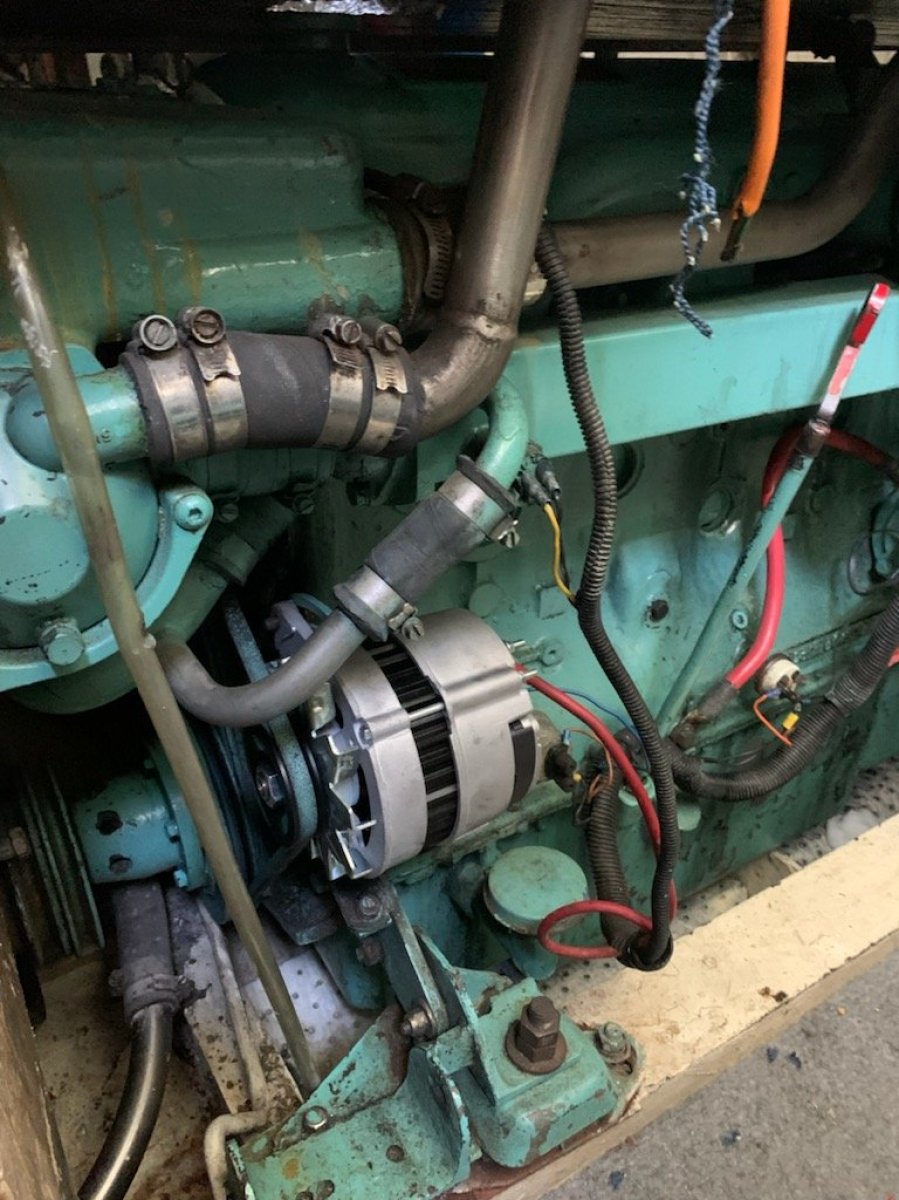

Engine: | 2 x 120 HP FORD SABRE DIESEL ENGINES
FRESH WATER COOLED
PRM GEARBOX-HYDRAULIC -NEW CLUTCHES 340 Hrs AS AT MAY 2024
DRIVE SHAFTS IN TUBES FILLED WITH OIL -TIMKEN TAPERED ROLLER BEARINGS TO TAKE THRUST
STAINLESS STEEL SLEEVES SWEATED ON TO SHAFTS AT CUTLASS BEARINGS (NEW 340 Hrs)
24 INCH PROPELLERS + 1 SPARE PROPELLOR |
Engine Make: | Ford |
Fuel Type: | DIESEL |
Engine Hours: | 340 Hrs AS AT MAY 2024 PORT ENGINE -SINCE REBUILD FROM BARE BLOCK BY CHESS ENGINEERING |
Engine Hours (2nd Engine): | 340 Hrs AS AT MAY 2024 STARBOARD ENGINE - SINCE REBUILD FROM BARE BLOCK BY CHESS ENGINEERING |
Max Speed: | 10 KNOTS UNDER POWER AND SAIL |
Cruise Speed: | 8 KNOTS UNDER POWER and UNDER SAIL |
Genset: | 2 x 15 KVA MODRA GEN SETS 415V 1 DRIVEN BY MAIN ENGINE & 1 BY 4 CYLINDER PERKINS DIESEL ENGINE (400 Hrs)+ UNUSED GENSET |
Fuel: | 3 TANKS -EACH CAPACITY GREATER THAN 800L (TOTAL > THAN 2400L)- 12V PUMP FOR TANK TO TANK TRANSFER |
Water: | WATER IN 2 TANKS -EACH GREATER THAN 800L (TOTAL GREATER THAN 1600L) + SPARE CAN BE CONNECTED TO ENGINE FOR HWS |
Galley: | FULL GALLEY
4 BURNER EMILIA GAS / ELECTRIC STOVE WITH CONVECTION OVEN AND GRILL -NEW 2016 NEVER USED
SMEG COMMERCIAL MICROWAVE INSTALLED 2016 (NOT USED)
2 BOWL STAINLESS STEEL SINK WITH HOT / COLD TAP + 1 SALT WATER TAP |
Refrigeration: | ALL FRIDGES / FREEZERS ARE EUTECTIC WITH BUILT IN INSULATION
ONE WHEELHOUSE FRIDGE (EUTECTIC WITH BUILT IN INSULATION)
ONE FRIDGE IN GALLEY (400Kg) EUTECTIC WITH BUILT IN INSULATION)
ONE FRIDGE FOR DRINKS ON BACK DECK
ONE 1 TON FREEZER ON BACK DECK (EUTECTIC WITH BUILT IN INSULATION)
ONE 1/2 TON FREEZER IN SALOON (EUTECTIC WITH BUILT IN INSULATION) |
Hot Water System: | HOT WATER SYSTEM 60L TANK + SPARE UNUSED TANK |
Accommodation: | 5 CABINS
1 TRIPLE BERTH, 4 DOUBLE BERTHS + SINGLE BERTH IN WHEELHOUSE
LEE CLOTHS TO ALL BUNKS
ALL BEDDING AND MATTRESSES IN GOOD CONDITION
12 MASON AND PEARE PILLOWS
4 HIGH QUALITY SEATS
ALL CURTAINS, UPHOLSTERY AND CUSHIONS IN GALLEY / SALOON NEW IN 2016 |
Shower: | 2 FULL HEIGHT INTERNAL SHOWERS + 1 EXTERNAL SHOWER |
Toilet: | 2 FULL SIZE HEADS -MACERATING MONO PUMP FOR SULLAGE DISCHARGE- LARGE SULLAGE TANK |
Entertainment: | TV IN SALOON |
Dinghy: | 3.8M UNSINKABLE POLY WAVEMASTER DINGHY MADE IN NZ |
Outboard: | 25HP YAMAHA OUTBOARD (7 Hrs) + 4 HP YAMAHA OUTBOARD (10 Hrs) |
Covers: | COVERS ENCLOSING STERN
BOOM COVERS FOR SAILS
SHADE COVER OVER FOREDECK |
Ground Tackle: | MUIR 415V ANCHOR WINCH
2 x PLOUGH ANCHORS AND CHAIN TO SURVEY REQUIREMENTS
2 LARGE ADMIRALTY ANCHORS |
Safety Gear: | 5 WATERPROOF BULKHEADS
FULLY AUTOMATIC NAPTH FIRE ALARM SYSTEM TO 2022 AMSA REQUIREMENTS
GAS CERTIFICATE
GAS MONITORING SYSTEM WITH AUTO SHUT OFF VALVES
10 FIRE EXTINGUISHERS
2 FIRE BLANKETS
24 IN SURVEY SOLAS LIFE JACKETS

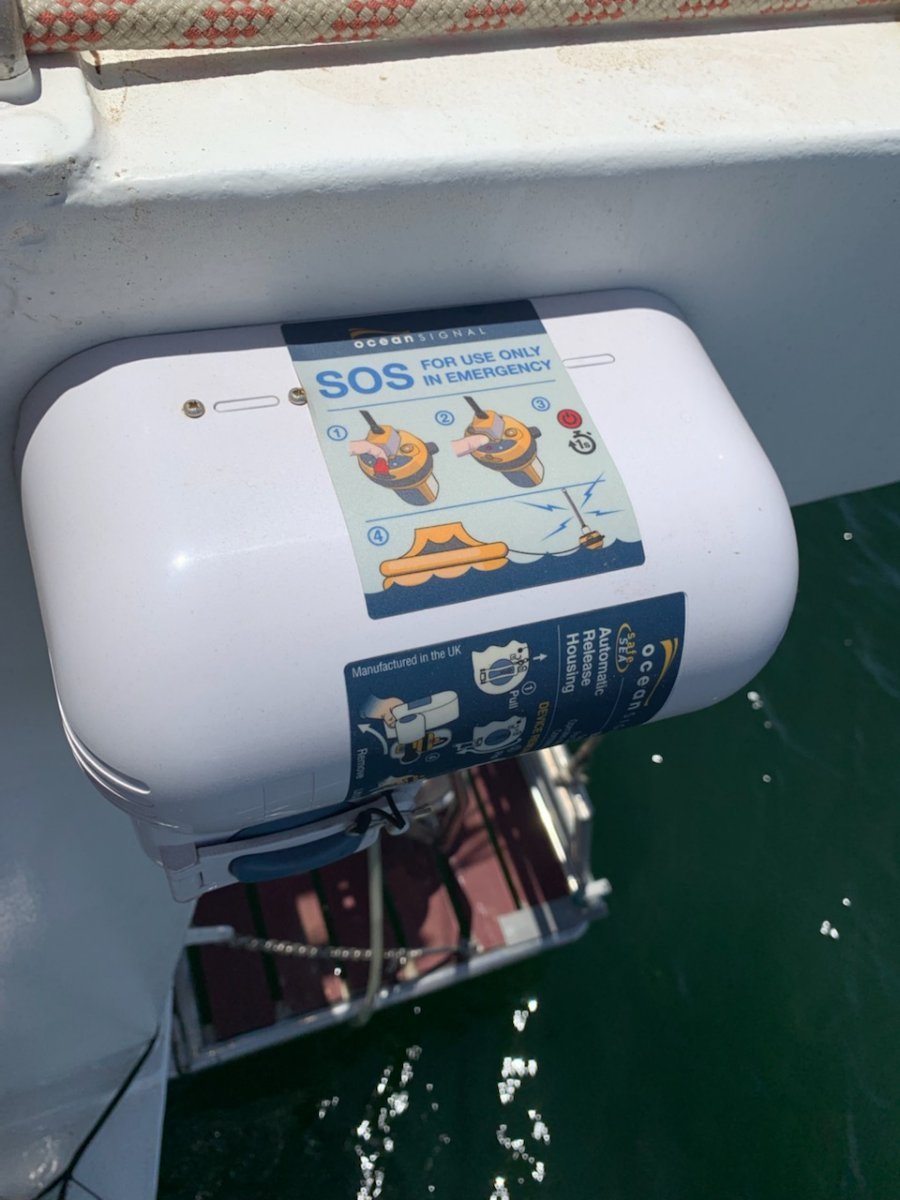

2016 EPIRB + NEW 2021 EPIRB
FLARES TO SURVEY REQUIREMENTS
2 LIFE RINGS WITH LIGHTS AND THROWERS
2 LIFE RAFTS LEASED UNTIL AUGUST 2022
D CLASS COMMERCIAL FIRST AID KIT TO 1A & 1B ($8,000-00)
COMMERCIAL PEDAL DRIVEN LIFE BOAT RADIO
NAVIGATION LIGHTS
SAFETY SIGNAGE THROUGHOUT
25M SERIES DROGUE WITH BRIDLE AND ROPE (RATED FOR 60 TONNE VESSELS)
LARGE BILGE PUMP WITH 3 INCH LINES TO 3 SECTIONS + 3 SPARE 240V ELECTRIC BILGE PUMPS |
Electrics: | 12V / 240V / 440V
WHOLE ELECTRICAL SYSTEM CERTIFIED BY SYNERGY
3 PHASE 440V SHORE POWER PLUG - 3 PHASE CONNECTING CABLE
SINGLE PHASE 240V SHORE POWER PLUG= SINGLE PHASE CONNECTING CABLE
SHIPS POWER BY GEN SETS TO STEPDOWN REGULATOR
3 PHASE DIRECTIONAL METER
12V EMERGENCY SYSTEM
NEW EARTHING STRAPS - TESTED AND APPROVED
SEA WATER COOLED AIRCONDITIONING UNIT LOCATED IN FORWARD TRIPLE DUCTED TO ALL CABINS FORWARD
AIRCONDITIONING UNIT AFT DUCTED TO 3 CABINS AFT
ALL CABINS HAVE FANS AND ALL BERTHS HAVE READING LIGHTS (ALL LIGHTING EXCEPT FOR READING LIGHTS ARE LED)
10 BATTERIES (4 NEW IN WARRANTY - 6 IN GOOD CONDITION)
2 MARINE BATTERY CHARGES + NEW 15 AMP BATTERY CHARGER
15 AMP MARINE TRICKLE CHARGER |
Electronics Navigation: | KODEN RADAR + FURUNO RADAR
HF RADIO WITH CODAN 9350 AUTOMATIC TUNING WHIP ANTENNA
ICOM VHF RADIO
AWA CB RADIO
GPS ON 14 INCH SCREEN
LAWRENCE AUTOPILOT
JRC SOUNDER - FORWARD LOOKING + FURUNO SOUNDER (TO BE INSTALLED) |
Sail Inventory: | ALL SAILS HEAVY DUTY DACRON TRIPLE STITCHED- LIKE NEW
DOYLE MAINSAIL
HEADSAIL ON REEFURL ROLLER FURLER
MIZZEN
SPARE FORESAIL FOR EMERGENCY |
Mast / Rigging: | KETCH RIG
ALUMINIUM MASTS
AUSTRALIAN HEAVY DUTY STAINLESS STEEL RIGGING (2013)
1 SPINNAKER POLE |

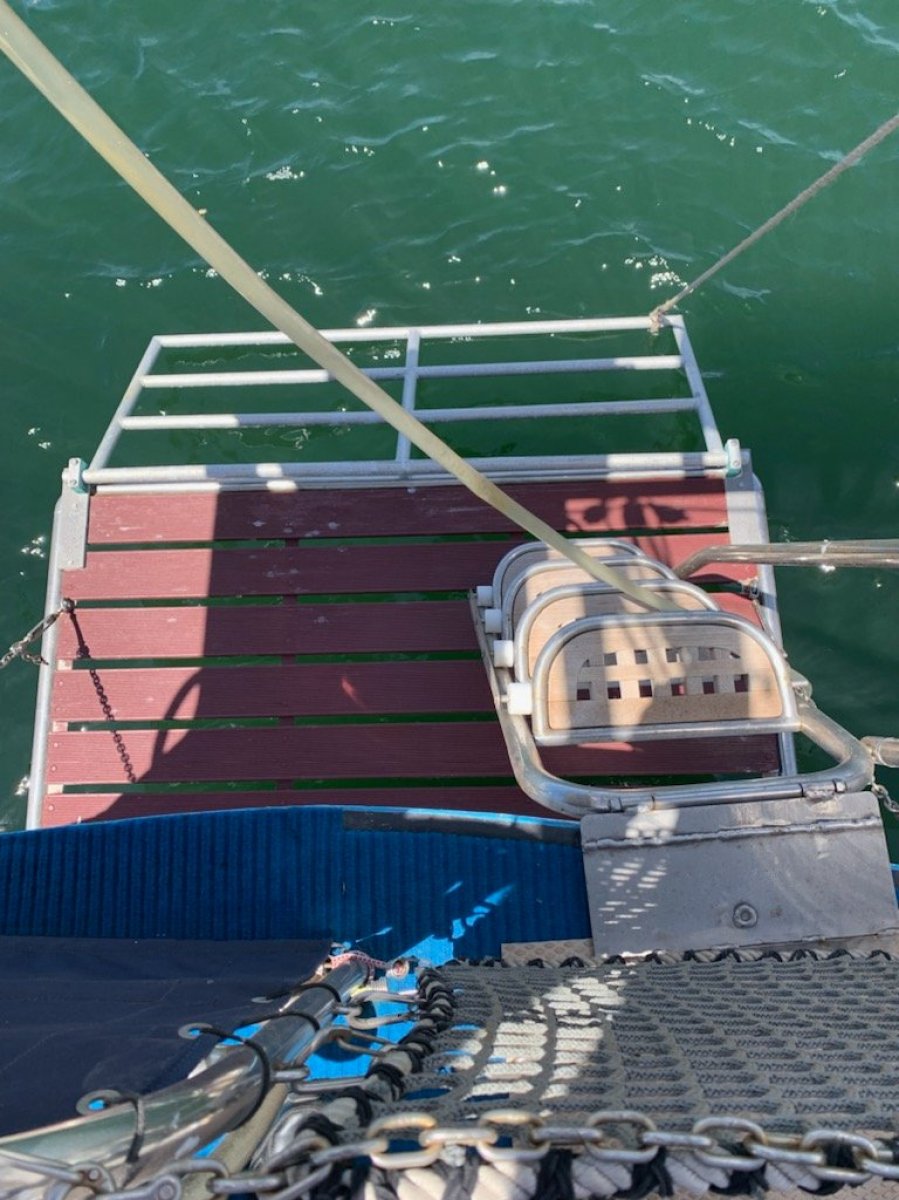

Deck Gear: | LARGE HINGED SWIM PLATFORM WITH RETRACTABLE STAINLESS STEEL BOARDING LADDER
3 VERATES DECK HATCHES WITH COVERS
BARLOW DECK WINCHES
COCKPIT TABLE
STAINLESS STEEL MARINE 240V ELECTRIC BBQ
9 FENDERS (1 x 900mm DIA, + 2 x ARTISAN WHITE 600mm DIA x 1.2M LONG + 1x 500mm DIA + 2 x 500mm DIA + 1x 300mm x1200mm LONG)
HEAVY DAVITS ON STERN WITH ELECTRIC WINCH FOR RAISING DINGHY |
Remarks: | ALL INSTRUCTION BOOKS, SAFETY MANAGEMENT PLAN AND COMPLIANCE CERTIFICATES, STABILITY BOOK
1.4M x 1.2M HATCH IN SALOON PROVIDED FOR EASY REMOVAL OF ENGINES - DOUBLES AS GREAT VENTILATION IF NEEDED
NEW INSPECTION PORTS TO WATER TANKS - REPAINTED INTERNALLY
INSPECTION PORTS CUT INTO REAR FUEL TANK
COMPRESSOR / HOSES / NEEDLE GUN FOR MAINTENANCE
5L PRESSURE POT (STILL IN BOX)
ELECTRIC WELDER (NEVER USED)
ALL TOOLS
MECHANICAL STEERING RENEWED IN 2015
4 INCH UNDER DECK INSULATION THROUGHOUT
GLASS AND SEALS N DEADLIGHTS RENEWED IN 2013
ALL GLASS IN MAIN CABIN AND WHEELHOUSE REPLACED WITH HIGH IMPACT VIRIDIAN GLASS
ALL HATCHES VETUS
ALL INTERIORS QUEENSLAND RED CEDAR (NO VENEERS OR CHIP BOARD)
ALL SIGNAL FLAGS
AUSTRALIAN SHIP FLAG
PAINTED USING INTERTUF INTERNATIONAL 2 PAK PAINTS
2 SURF SKIS
BLOW UP LOUNGE SUITE
18 NEW DECK PILLOWS
NOTE:
1. The particulars and specifications have been supplied by the seller. Such particulars and specifications have not been verified by Ben Lexcen Marine Brokers. It is the purchaser's responsibility to verify the accuracy of such particulars and specifications.
2. All items listed above are expected to be in working order unless otherwise noted |
